Firkin Brewery

Scope Of Project

3 vessel 16HL Brew house manufactured and installed as a turn key system.

Double batch liquor tanks with pump skid and pre cooler.

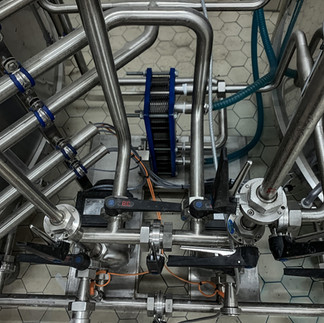

Complete pipe work installation

Grain handling equipment.

5 Uni tanks, 1 packaging tank glycol chiller with logic cool control.

Logic clean 2 station keg washer

Mobile pumps and two tank CIP System

Full pipe work installation including C02, filtered and un filtered water mains.

 Plant Configuration

We have recently added the Logic Brew 16HL to our extensive brew house range, This brew house has been designed with master brewer Hugo Anderson with the intension to provide a comprehensive system to suite the demands of the uk craft beer market, with this in mind We have successfully commissioned a highly efficient brew plant capable of producing high quality wort repeatably.

·       Single infusion Mash Tun

·       Wort Kettle - electrically heated

·       Whirlpool Tank

·       Full stainless steel platform incorporating Pipe work and instrumentation

·       Full data logging of brew days to allow analysis of every brew

·       Automatic liquor dosing and recirculation

·       Full View grist hydrator with CIP

·       Glass Man ways with vessel lighting

·       Liquor and wort flow meters

     Environmentally friendly Option

• Pureweld are one of a handful of remaining companies that build brew houses and vessels in the UK.

• grain discharge designed for loading biofuel containers for secondary purpose.

Efficient and energy saving

·     Customised whirlpool floor that maximised the final yield whilst achieving perfect wort separation.

·       Cold water flush incorporated into the Cip loop to allow for hassle free cold rinsing instead of wasting hot water where not required.

·       Pre cooler fitted to cold liquor tank achieving 5 degrees on tank entry reducing load on glycol chiller.
